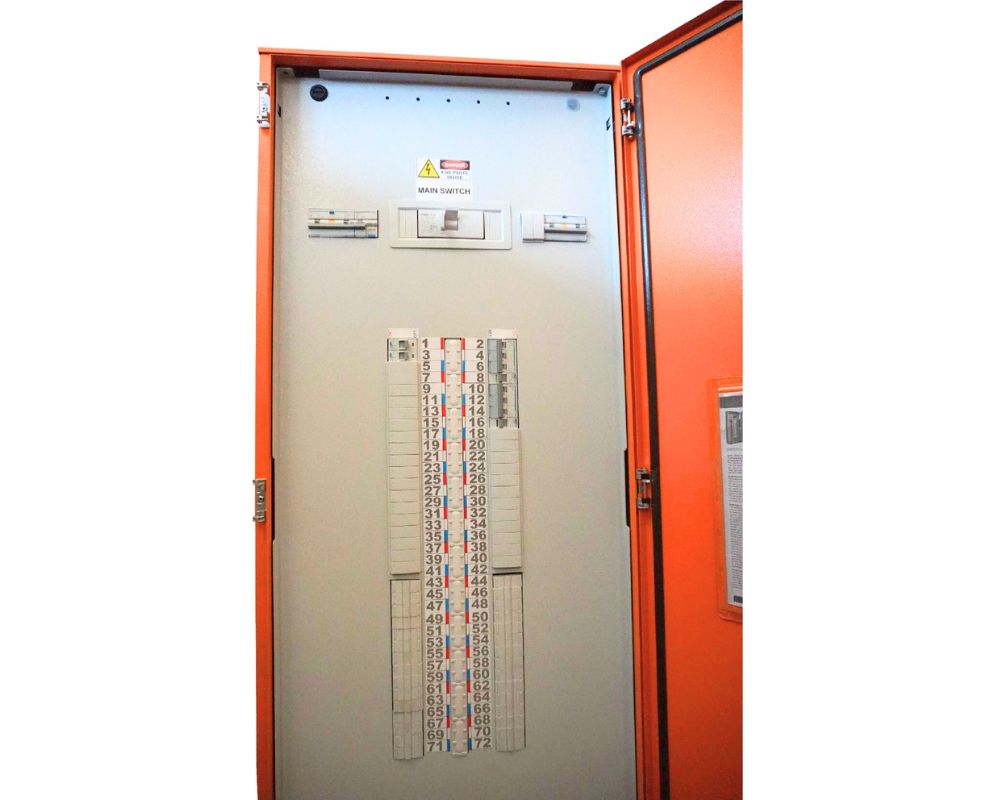

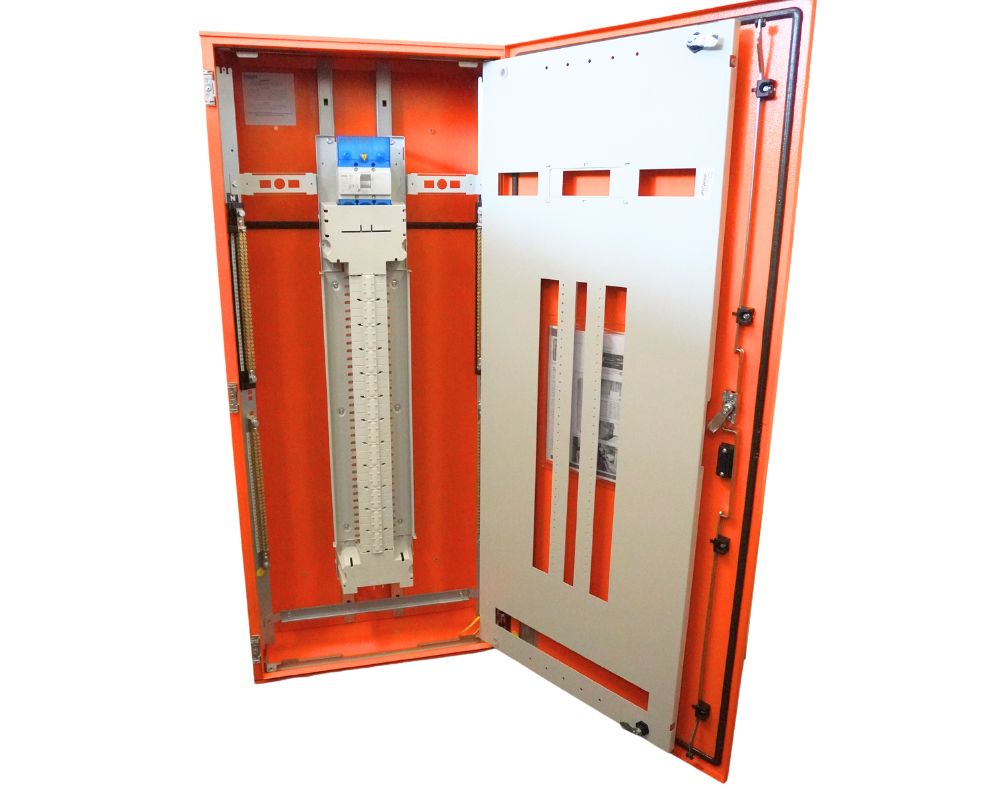

72 Pole Board with 250A Isolator Switch – Outdoor

Model
google-reviews
Contact Us
Availability: instock

QUICK OVERVIEW

Dedicated Outdoor Electric Vehicle distribution board

  • AS/NZ 61439-3 standard.
  • Suitable for all outdoor applications, rated for 250A, capable of servicing upto 24 AC single phase chargers or 18 AC three phase chargers.

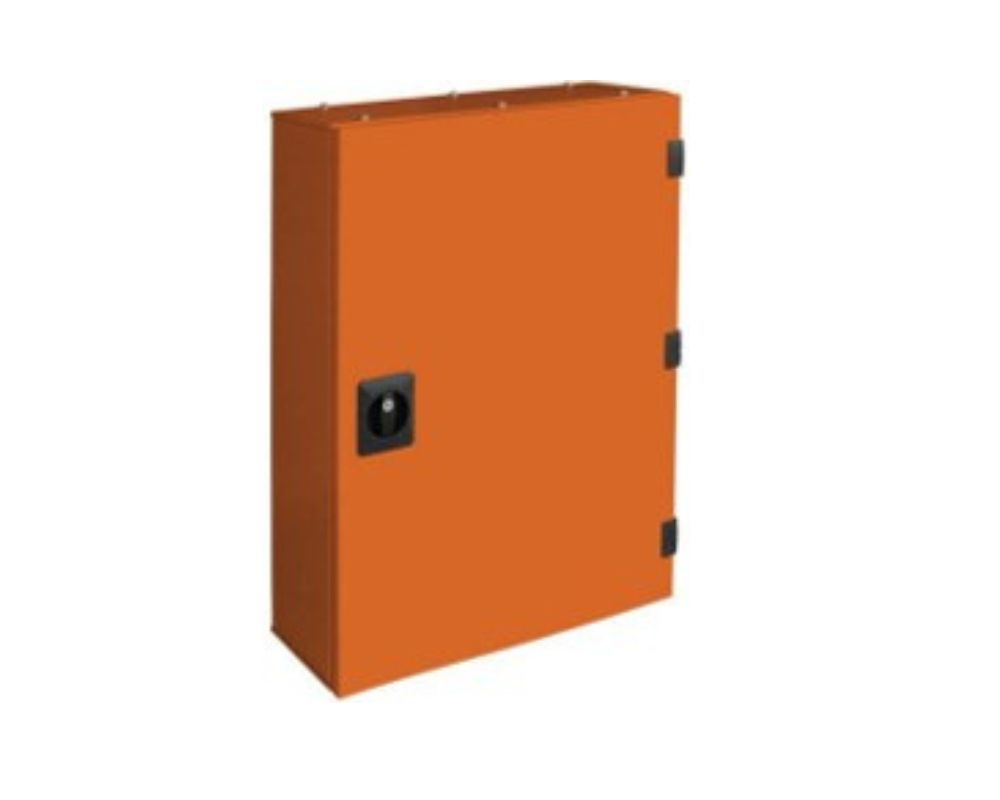

  • Matching extension boxes available here
SKU: OC-7200COM
Shipping 3 Free Shipping Australia Wide
Warranty 3 Up to 2 Years Warranty
Dispatch 3 Same Day Dispatch
Years 3 Since 2015
Description Dedicated EV-DB
Product EV-DB (Outdoor) – Orange

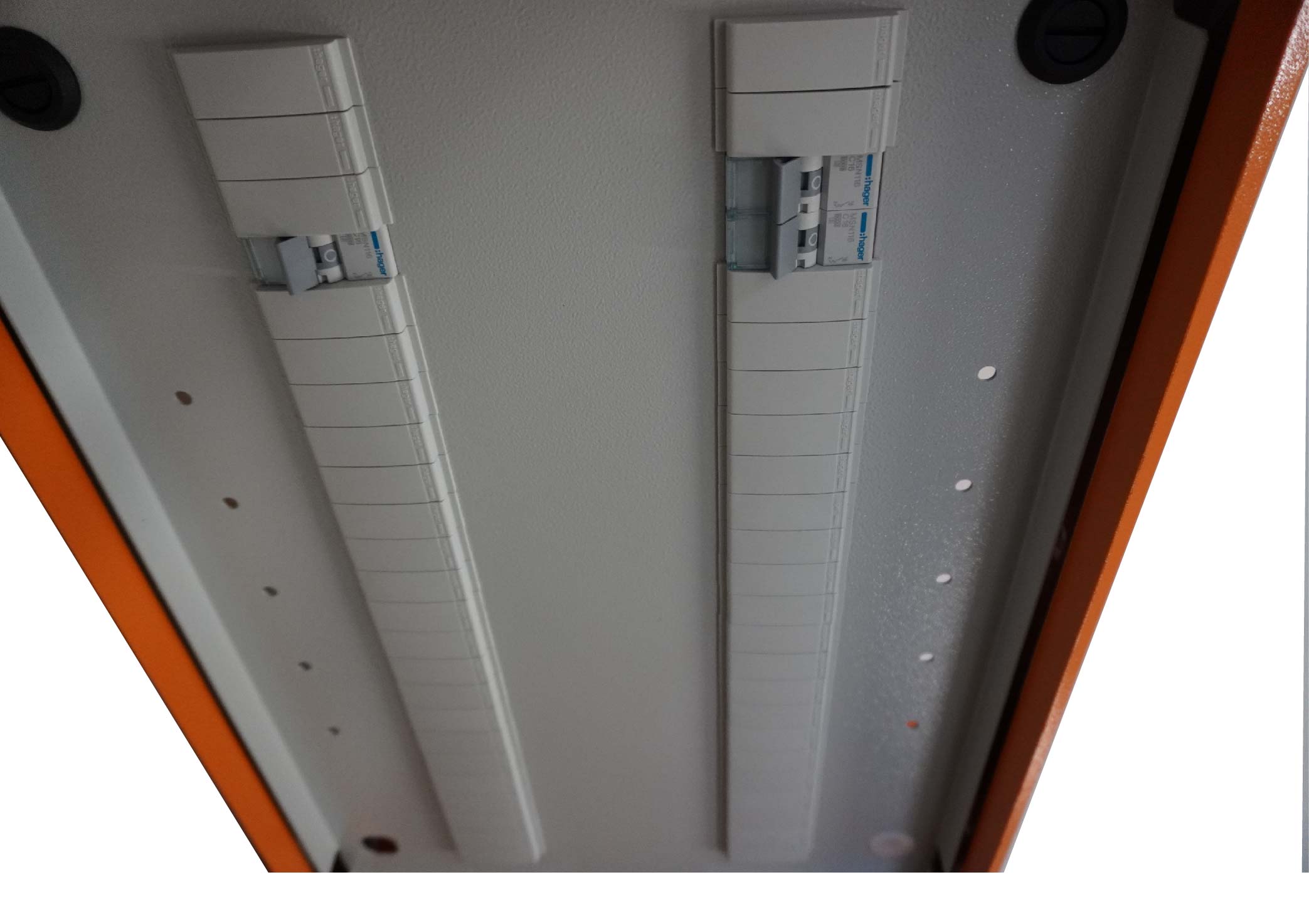

Poles 72 Poles Chassis + 2 x 6 pole DIN
Rails 3
Modules 36
Regulations AS/NZ 3000 | AS/NZ 61439-3
Rated Current 250A
Rated Voltage 250V
Rated Operational Voltage 415V
Rated Insulation Voltage 690V
Rated Impulse Voltage 4kV
Rated Short Circuit 20kA 0.2sec | 40kV peak
Frequency 50Hz
IK Rating IK05
IP Rating
IP66
Dimensions 1400mm (H) x 600mm (W) x 250mm (D)
Lock
Key lockable
Door Field Reversible Door
Additional Removable 24 pole DIN section on bottom – Purchased separately
Material 1.6mm Galvanised Steel

Additional information

Weight 32 kg
